Shoulder Wheel, IMI 2801

Price upon request
  • Product is not available

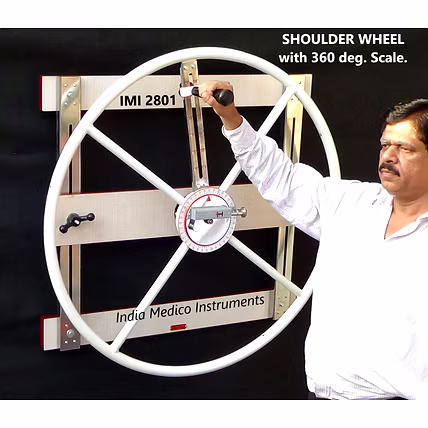

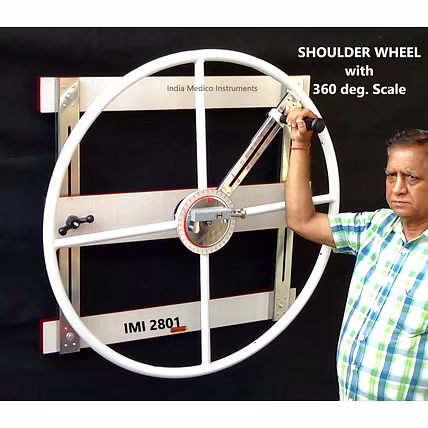

The Shoulder Wheel provides a smooth, easily measured range of movement with variable resistance. The tubular steel Wheel is fitted with a Brake drum for Resistance and a 360-degree scale for feedback.
  • Additional Information

    FEATURES:

    * Construction: 100cm diameter, tubular steel constructed Wheel is fitted with a precision-machined, plastic-moulded drum & fitted with brake pads for resistance.

    * Movement: Bi-directional operation for shoulder & elbow.

    * Mounting: The Wheel is mounted on three laminated wall boards.

    * Arc of Motion: The arc of motion on a stainless steel arm can be varied from 30cm to 80cm by fixing the handle at the required place.

    * Height Adjustment: Two wall boards are fitted with Two STAINLESS STEEL channels (81cm H x 6cm W), and the Wheel can be raised or lowered by 50cm to suit each patient.

    * Resistance: The wheel is fitted with an advanced Calibrated Sensitive Resistance mechanism, and the resistance is controllable from Zero to Maximum.

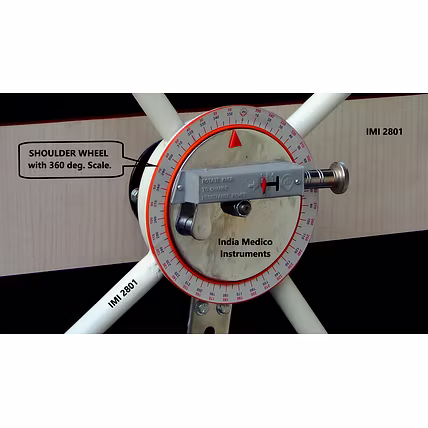

    * Feedback: A 360-degree scale is provided on the drum to measure and record the degree of revolution from either direction (for the Left or Right Shoulder) for immediate feedback to the patient.

    * Finish: Powder-coated finish with polished Stainless Steel channels.

    * Wall mountable unit, set includes mounting hardware.

    * Manufactured as per the ISI standard.
